    Electric Pipe Cutting And Beveling Machine, Cutting Beveling Machine , OD Mounted

    OD Mounted Electric Pipe Cutting And Beveling Machine


    Introduction


    External clamp pipe cutting and beveling machine, the body can be divided into two petals,
    installed on the pipe spindle for processing. It is suitable for pipe cutting, beveling, boring inner holes, flange end face
    processing and outer circle processing, etc. The processing bevel angle can be selected at will, and the tool holder can move
    automatically.
    According to different driving methods, it is divided into a small number: electric type , servo electric (, hydraulic
    drive and pneumatic , which converts different pipe diameter requirements. Extensive replacement of oil, petrochemical,
    beer, beverage and dairy products, pharmaceutical, metallurgy, water treatment, shipbuilding, electric power and other industries
    after cutting, directly welding; at the same time, non-standard specifications can be customized according to customer needs,
    cutting non-standard grooves
    The machine body adopts the advanced forging process and heat treatment to ensure the strength
    and hardness of the machine body. At the same time, the precision turning CNC lathe is used to ensure the processing accuracy.


    Application

    ■ Boiler plant

    ■ Nuclear power & thermal power

    ■ Pharmaceutical factory

    ■ Ship building and repaire


    Features

    ■ Split frame structure, can be quickly install

    ■ Cold Cutting and Beveling, no heat affected zones

    ■ Aeronautical aluminum material ensure portability


    Models Dimension


    Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

    The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

    ModelA (mm)B(mm)C(mm)D(mm)E(mm)F(mm)G(mm)
    SFM020617670122176225253164
    SFM040822870122176225253164
    SFM061233270122176225253164
    SFM081436470122176225253164
    SFM121846870122176225253164
    SFM142051870122176225253164
    SFM182462210298176235253174
    SFM202667410298176235253174
    SFM243077610298176235253174
    SFM263282610298176235253174
    SFM303692810298176235253174
    SFM3238100610298176235253174
    SFM3642108210298176235253174

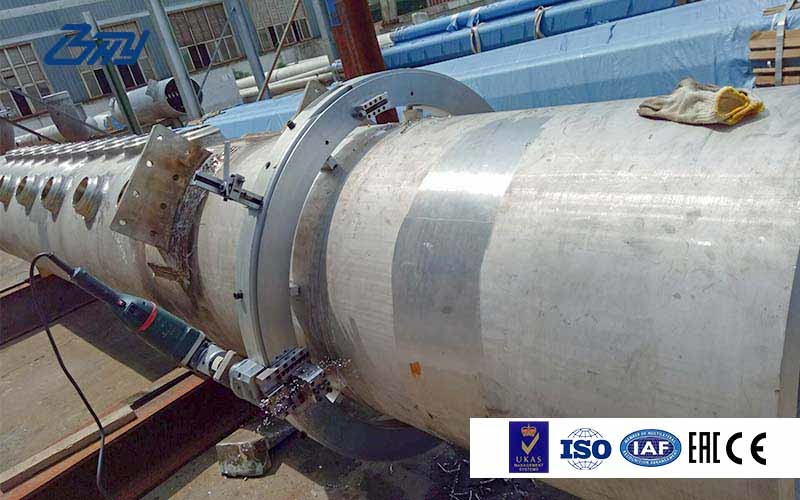

    Working on site:
