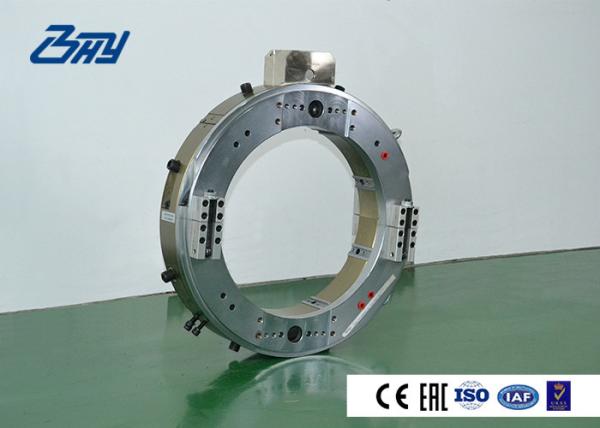

Split Frame Machine
Product Introduction
SFM series are portable processing equipment for cutting, beveling
and end prefabrication of various pipes, with which cutting and
beveling can be conducted at the same time. The SFM Series
manufactured by Bohyar cuts and bevels the pipe end or middle of
pipe by clamping external wall, with processing diameter up to 2100
mm and maximum wall thickness of 100 mm. With an R&D history of
nearly one hundred years, the product can process pipes or casings
accurately, continuously and vertically.
Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe
diameter.
Routine Maintenance
Timely maintenance can extend the life of the machine and make the
machine process high-quality bevel. Therefore, keeping good using
and maintenance habits are strongly recommended in the daily use.
■ Maintenance and repair must be conducted by professionals.
■ To ensure sound operation of the equipment, using original parts
is suggested.
Note: Make sure the equipment is disconnected from power before
maintenance.
FAQ
Q: Do you have any foreign agents?
A: Yes, of course. We pay attention to the foreign market and
expand the foreign continuously through our agents in Russia,
Korea, Sudan, Pakistan, Malaysia and so on. We are willing to
develop new agents in other countries.
Q: Which certificate does your company have?
A: We have many certificates such as high-tech enterprises,
high-tech product certification, high-tech product certification,
ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates
of our machines.
Report on Comparison of Product Advantages
| Name of component | Bohyar | Others | Advantages |
| Fixed coil | Imported aviation aluminum | Steel 45# | Light |
| Moving coil | Die steel | Steel 45# | Solid and durable |
| Tool | Imported tool material | Low price | Good quality |
| Tool slide | Die steel | Steel 45# | Solid and durable |
| Tool slide structure | Compact and small size | Large | Small size |
| Eccentric shaft | Quenching and grinding processing | Lathe processing | High precision |
| Gear | Gear-grinding processing | Gear-shaping processing | High precision, stable operation and low noises |
| Power supply (electric) | Germany motor | Low price | Strong power, stable operation, low noise and long service life |
| Power supply (pneumatic) | Taiwan pneumatic motor | Low price | Strong power, stable operation, low noise and long service life |
| Power supply (hydraulic) | White motor | Low price | Strong power, stable operation, low noise and long service life |
