Auto Feed Electric Pipe Cutting And Beveling Machine , Steel Pipe Beveler

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

Beveling type

SFM Tools

Models Dimension

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Manufacture

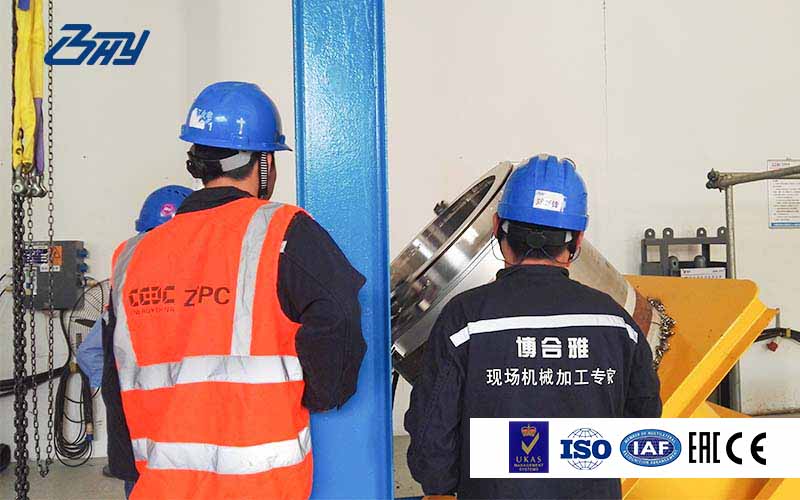

Working on site

■ Project: chemical plant repaire

■ Pipe material: 5CrMoR+00Cr19Ni10

■ Pipe O.D.: 1219mm, 350mm

■ Pipe thickness: 59mm, 30mm

General Instruction

Bohyar, headquartered in Suzhou City, Jiangsu Province, always endeavors to provide customers with a full set of solutions for industrial pipeline. After many years of research and development, Bohyar has produced a full range of online pipeline cutting and beveling equipment, hydraulic power station, flange facer etc., which is flexible to meet different needs of customers around the world. We devote our efforts to serve for many fields such as global nuclear power plant, oceaneering, pressure vessel, long distance pipeline and chemical plant. What’s more, we are improving our products continuously by exploring the practical usage of the site, which allows our team to create high-quality products and service.
