Pneumatic Pipe Cutting and Beveling Machine For Energy Field
Product Introduction
SFM series equipment is one removable, portable, burr-free,
highly-precise and vertical cold working pipe cutting and beveling
equipment which can be used to process the pipe, install the bridge
rail and repair the end surface of flange. It is the best choice
for the outdoor construction!
Structure
Lighter, Small Gap, Split Type, Cutting & Beveling
Industry Application
The SFM Series of Pipe Cutting and Beveling Machines are widely
used in long-distance transport pipeline, power plant, nuclear
power, petroleum, chemical engineering, natural gas, boiler shop,
pharmacy, pipe prefabrication plant, pipeline installation
engineering, rush-repair work, etc. Our products play an important
role in these fields.
Specifications
| Model | SFM0612 |
| Drive Mode | Pneumatic |
| Air Requirements | 2-3m³/min |
| Application Range (O.D.) | 6" - 12" (168.3-323.9mm) |
| Wall Thickness | ≤40mm |
| Net Weight | 45kg |
| Feed Method | Star wheel system |
| Feed | 0.08mm/r |
| All standard accessories included |
Specification
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless
steel, duples stainless steel, nickel alloy
Beveling type

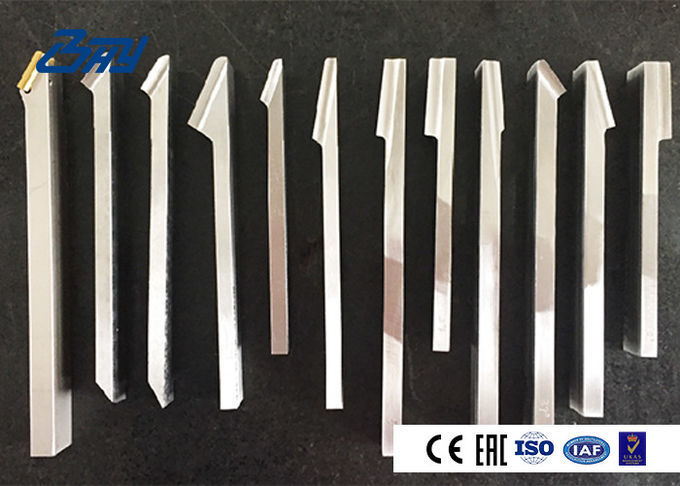

SFM Tools
Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe
diameter.

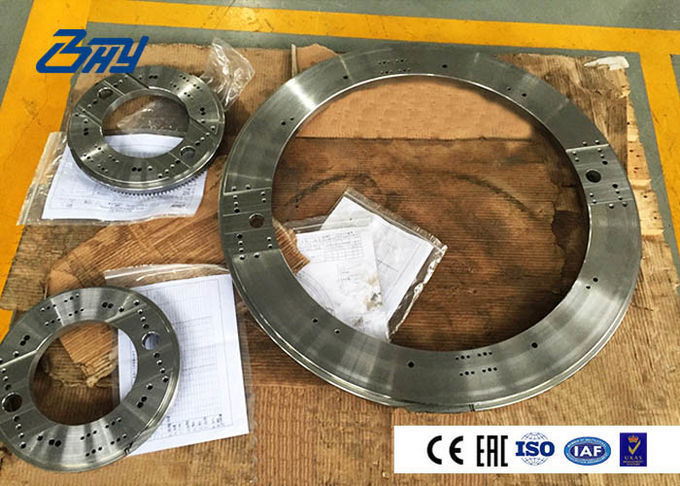

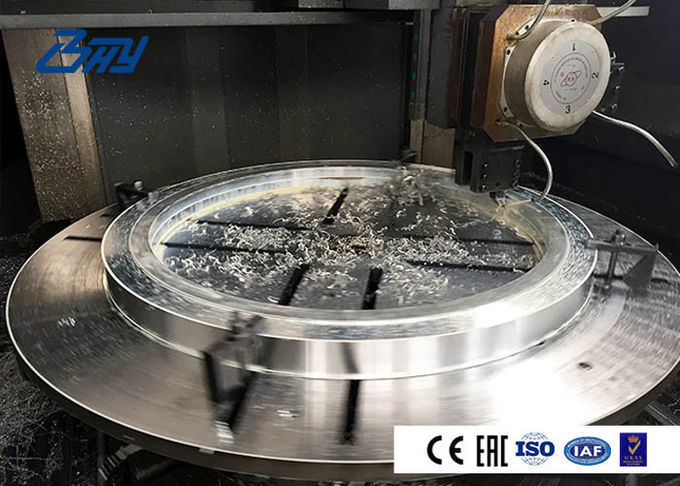

Manufacture
Working On Site
