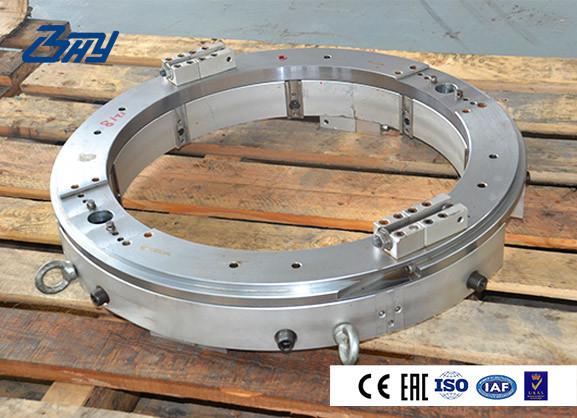

Small Size Pneumatic Pipe Cutting And Beveling Machine Occupying Small Space

Split Frame Machine

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.

Specifications

We have three drive modes and they also have different technical parameters. The air requirements are 2-3m³/min. The hydraulic requirements are 65L/min, 10mpa. The electric requirements are 220V/AC. We adopt the star wheel system with 0.08mm/r feed amount. The finish is anodizing sand blasting. We have different packaging methods such as aluminum alloy, metal packing case or wooden box according to the different models of split frame machines.

Our Advantages

■ Material
Fixed rings use lightweight and high-strength imported aeronautical aluminum with anodized surface;
Moving coils use mold steel with chrome-plated surface .

■ Technology
Eccentric shafts and gear shafts used grinding process after quenching to ensure the accuracy of the tooth surface.
■ Power
Three imported motors to choose from: Germany Metabo electric motor, imported pneumatic motor and American White hydraulic motor.

On-site Service Reference

Report on Comparison of Product Advantages

General Instruction

Bohyar, headquartered in Suzhou City, Jiangsu Province, always endeavors to provide customers with a full set of solutions for industrial pipeline. After many years of research and development, Bohyar has produced a full range of online pipeline cutting and beveling equipment, hydraulic power station, flange facer etc., which is flexible to meet different needs of customers around the world. We devote our efforts to serve for many fields such as global nuclear power plant, oceaneering, pressure vessel, long distance pipeline and chemical plant. What’s more, we are improving our products continuously by exploring the practical usage of the site, which allows our team to create high-quality products and service.
