Brand Name : | BHY |
Model Number : | SFM0612H |
Certification : | ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007 |
Price : | Negotiate |
Payment Terms : | L/C, T/T, |
Supply Ability : | 1000 sets/year |
Delivery Time : | 30-45 work days |

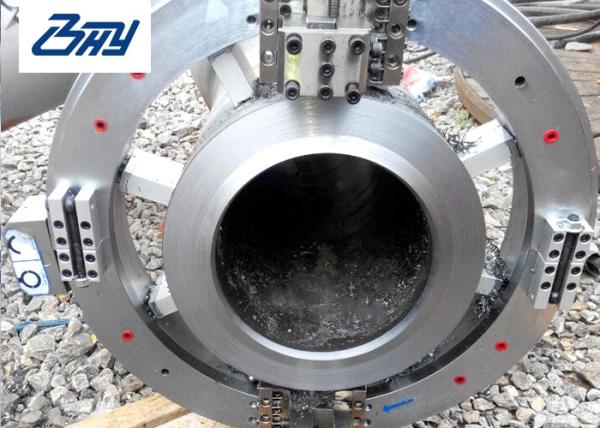

SFM series machines are available to cut, bevel, counterbore, drill and mill pipes from 2 inch - 84 inch O.D. (50-2133.6mm) on all diameter of carbon steel, stainless steel, and various types of alloy pipes. They are widely used in nuclear power, thermal power, petroleum, chemical plant, natural gas, boiler plant, pharmaceutical factory and other areas.
■ Material
Fixed rings use lightweight and high-strength imported aeronautical
aluminum with anodized surface;
Moving coils use mold steel with chrome-plated surface .
■ Technology
Eccentric shafts and gear shafts used grinding process after
quenching to ensure the accuracy of the tooth surface.
■ Power
Three imported motors to choose from: Germany Metabo electric
motor, imported pneumatic motor and American White hydraulic motor.
Dimension and Selection
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors | |||||||
Model | A(mm) | B(mm) | C(mm) | D (mm) | E (mm) | F (mm) | G(mm) |
SFM0206 | 176 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0408 | 228 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0612 | 332 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0814 | 364 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1016 | 416 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1218 | 468 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1420 | 518 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1824 | 622 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2026 | 674 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2430 | 776 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2632 | 826 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3036 | 928 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3238 | 1006 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3642 | 1082 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM4248 | 1236 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3648 | 1296 | 140 | 220 | 276 | 235 | 253 | 174 |
SFM4860 | 1600 | 140 | 220 | 276 | 235 | 253 | 174 |
SFM6072 | 1905 | 140 | 220 | 276 | 235 | 253 | 174 |
SFM7284 | 2210 | 140 | 220 | 276 | 235 | 253 | 174 |
![]() |
