ID Mounted Inner Flange Facing Equipment Lathe Level End Face Machining

Product Introduction

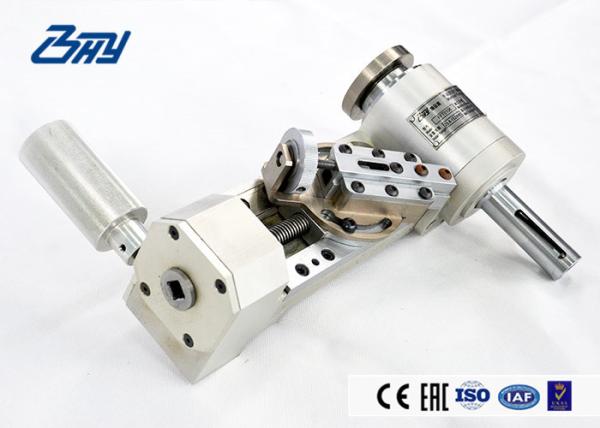

FFT series of manual flange facers are the small-diameter flange facing devices that have the accuracy and performance similar to lathes. The products can rapidly, accurately and efficiently meet the demands of on-site repair and help to reduce downtime and costs of dismantling, transportation and reassembly.

Technical Parameters

Installation & Processing

■ Measuring the internal diameter of the pipe

■ Consult the manuals.

■ Take out the expansion block, the connecting block according to the serial number

■ Install the expansion block, the connecting block

■ Rotate the wire rod, adjust the position of the knife

■ Loosen screw and feed

■ Cut the inner ring to ensure the level

■ Tighten the swelling part and feed a certain depth

■ Tighten the screw at the tool post

Operating Steps

■ Rapidly lock the central shaft with a ratchet wrench, and accurately align it to ensure the concentric operation along with the flange end face.

■ Properly adjust the tool onto the surface to be machined, and set the feeding size.

■ Hold the hand wheel rotating device to machine the flange end face.

■ No maintenance is needed theoretically after operation, but it us recommended to lubricate the product on a regular basis to maximize the performance and service life.

Operating Instructions

■ Wear protective clothing including safety goggles, hard hat, steel toe shoes, ear plugs (hearing protection), hair restraints and coveralls.

■ Never wear jewelry when operating rotating machinery.

■ Keep the worksite clean. Use a brush to remove chips from the work piece. Do not use your hands or an air hose to remove chips.

■ Support work material for total machine weight.

■ Keep hands away from machine when operating! Adjustments should only be made when the rotation has stopped. Keep hands away from all pinch points

Information and feedback

Warranty Information: The FFT106 manual flange facing tool produced by Bohyar has a warranty period of one year. In case of any quality problem during the warranty period, we will provide free maintenance and repairment service.

Feedback: We will highly appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
