Low Speed Double Acting Diesel Hydraulic Power Unit For Boiler
Plant , Refinery
Product Introduction

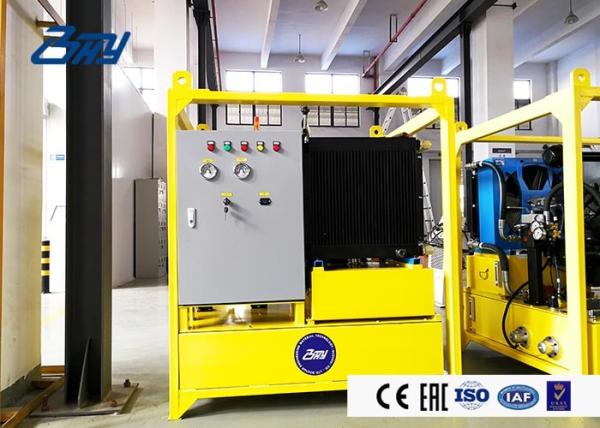

HS series of diesel hydraulic power units are mobile hydraulic
power supply stations without connecting to the electric power. Our
HS 36 can offer the strong and stable power without connecting to
the electric power, very suitable for the field, factory working.
Features
Diesel Hydraulic system uses imported gear pump. The output
pressure is stable. It can increase the life of the tool, save the
cost and improve the efficiency. The battery starts the diesel
engine which drives the hydraulic pump. The hydraulic pump produces
the high pressure hydraulic oil which drives the hydraulic motor to
drive the load.
■ It uses step less speed variation. The equipment can achieve tool
setting and adjustment in the case of low-speed.
■ It adopts compact design. The overall size and weight are
compressed under the premise of ensuring the power, which can
guarantee the stability of the machine and convenient
transportation.
Technical Parameters
| Model | HS-36 |
| Drive mode | Diesel |
| Rated pressure | P=15Mpa |
| Rated flow | Q=90L/min |
| Rated power | N=28KW(36HP) |
| Rated speed | n=2600 r/min |
| Shipping dimensions | 1386x1200x1500(mm) |
| Shipping weight | 800kg |
Equipment Overview
■ HS-36 adopts one-piece structure, it is easy to move and makes
the pipe connection easier with quick change connector.
■ The machine can work continuously within 40 ℃ temperature by the
oil cooling system.
■ It can make starting, stopping and warming up function through a
integrated control box.
■ With the double oil passages function, we can make drilling and
cutting at the same time.
■ To ensure that users can quickly access we have the quick connector
which can be plug and pull quickly.
Attention
■ If any equipment has abnormal sound in the follow-up process,
please stop using equipment and contact the manufacturer
immediately.
| Antifreeze (vol%) | Water (vol%) | Freezing temperature (degrees Celsius) |
| 100 | 0 | -45.0℃ |
| 90 | 10 | -40.0℃ |
| 80 | 20 | -33.5℃ |
| 70 | 30 | -25.5℃ |
| 60 | 40 | -19.0℃ |
| 50 | 50 | -13.0℃ |
■ It stores in a cool and airy warehouse. Must keep it away from the
fire, heat, seepage and rain.
■ It should be kept separately from oxidants and halogens, and must
not be mixed.
■ It adopts explosion-proof lighting and ventilation facilities. The
mechanical equipment and tools, which are easy to produce sparking,
are prohibited.
■ The storage area shall be equipped with emergency disposal
equipment and suitable storage materials.
