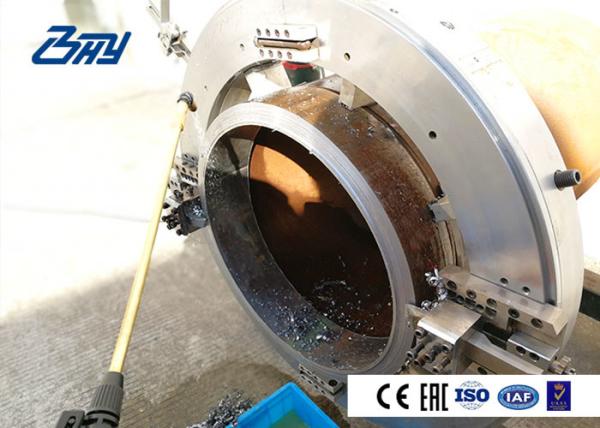

42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic
Power Pipe Bevelling Machine
Pipe Cutting and Beveling Machine Product Introduction
SFM Series of Pipe Cutting and Beveling Machine is the pipe
processing equipment independently developed by our company based
on the market and prospect of pipe service industry. The products
are portable, precise, and efficient and in modular design, fully
meeting customer demands, so they are the perfect choice for the
cutting, beveling and end prefabrication of various pipes.
Pipe Cutting and Beveling Machine Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can
customize the tools.
We have several bevel type: v-shaped, y-shaped, compound shaped,
compound j-shaped as well as j-shaped. Customized tools can be
provided for processing bevels of other angles.
Pipe Cutting and Beveling Machine Product Features
■ It is multifunctional and can be used for pipe reaming, beveling,
cutting of thick-walled pipes, etc.
■ The tool slide is in high strength structure, with long service
life and high processing precision;
■ Clamping pipe is simple and the expansion blocks in all models
have been equipped based on the model of machines, so the clamping
can be completed only by making subtle adjustment.
■ It is designed in the principles of light weight, portability and
durability;
Pipe Cutting and Beveling Machine Standard Configuration
| Machine | SFM machine | 1PC |
| Drive Mode | Electric/pneumatic/hydraulic Motor | 1PC |
| Components | Aluminum alloy/wooden packing case | 1PC |
| Cutter holder | 1PC |
| Cutting blade | 1PC |
| Tools | Rubber hammer, Spray bottle, Square, Wrench set | 1SET |
| Documents | Operating manual, SFM | 1PC |
| Certificate of conformity, SFM | 1PC |
| U-disk | 1PC |
Pipe Cutting and Beveling Machine Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe
diameter.
Pipe Cutting and Beveling Machine Manufacture
Pipe Cutting and Beveling Machine Working On Site
