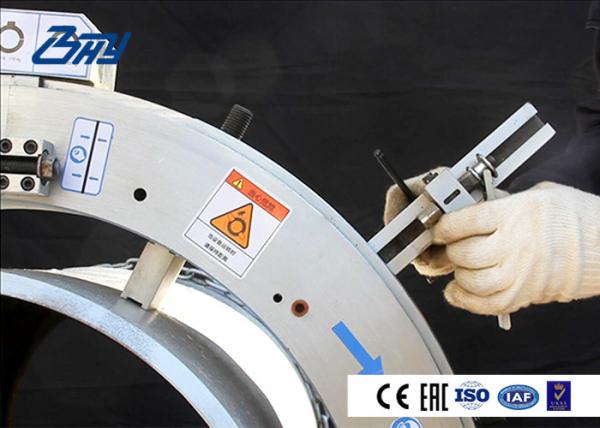

20in -28in Portable Pipe Cutting And Beveling Machine Cost
effective
Portable Pipe Cutting And Beveling Machine Introduction
SFM series are portable processing equipment for cutting, beveling
and end prefabrication of various pipes,
with which cutting and beveling can be conducted at the same time.
Portable Pipe Cutting And Beveling Machine Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
Portable Pipe Cutting And Beveling Machine Models
Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
SFM0408 | 4"~ 8" | 40 | 40 |
SFM0612 | 6"~12" | 80 | 45 |
SFM0814 | 8"~14" | 100 | 55 |
SFM1218 | 12"~18" | 100 | 70 |
SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
SFM1824 | 18"~24" | 100 | 123 |
SFM2026 | 20"~26" | 100 | 130 |
SFM2430 | 24"~30" | 100 | 142 |
SFM2632 | 26"~32" | 100 | 150 |
SFM3036 | 30"~36" | 100 | 159 |
SFM3642 | 36"~42" | 100 | 179 |
SFM4248 | 42"~48" | 100 | 198 |
SFM4860 | 48"~60" | 100 | 642 |
SFM6072 | 60"~72" | 100 | 730 |
SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe
diameter.
Portable Pipe Cutting And Beveling Machine Features
■ Low friction adjustable bearing system provides maximum stability
and extended machine life
■ Full closed bearing and driving gear system for operational
safety
■ Adjustable Bearing System-Distributes load evenly to ensure
stability
■ Interchangeability of Components-Allows accessories & tool slides
to mount to multiple ring sizes
Tool Slides
■ Thick-wall tool slide (conventional): It can be used to SFM
models from 0206 to 4248 with stroke of 64 mm; It can be used in
large-size pipes and pipes with different wall thicknesses.
■ Spring tool slide: It is used to track the surface of
out-of-round pipes, which can greatly save installation, adjustment
and cutting time. It can quickly and automatically track the system
to ensure continuous truncated edge, and can even keep standard
wall thickness of large diameter counterbore when combined with
counterbore slide.
■ Drilling and milling tool slide (only for hydraulic): it can
achieve pipe cutting by using the drilling and milling. It is a
high-strength tool slide, smooth cutting and simple operation.
Report on Comparison of Product Advantages
Name of component | Bohyar | Others | Advantages |
Fixed coil | Imported aviation aluminum | Steel 45# | Light |
Moving coil | Die steel | Steel 45# | Solid and durable |
Tool | Imported tool material | Low price | Good quality |
Tool slide | Die steel | Steel 45# | Solid and durable |
Tool slide structure | Compact and small size | Large | Small size |
Eccentric shaft | Quenching and grinding processing | Lathe processing | High precision |
Gear | Gear-grinding processing | Gear-shaping processing | High precision, stable operation and low noises |
Power supply (electric) | Germany motor | Low price | Strong power, stable operation, low noise and long service life |
Power supply (pneumatic) | Taiwan pneumatic motor | Low price | Strong power, stable operation, low noise and long service life |
Power supply (hydraulic) | White motor | Low price | Strong power, stable operation, low noise and long service life |
