Quick Installation Cold Pipe Cutter and Beveller With Pneumatic
Drive Mode
Product Introduction
The Split Frame machines is ideal for all types of pipe
cutting,beveling and end prepping.Our precise,consisteently square
cuts and bevels on pipe and tube and casing the first time,every
time.SFM series machines are widely used in nuclear power, thermal
power, petroleum, chemical plant, natural gas, boiler plant,
pharmaceutical factory and other areas.
Product Advantages
Our Material

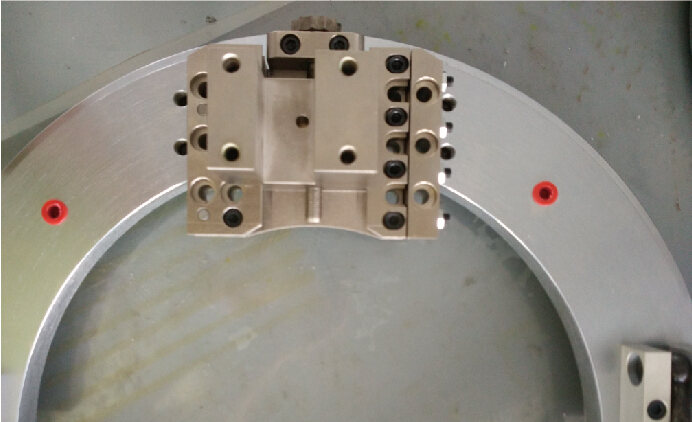

• Fixed rings use lightweight and high-strength imported
aeronautical
• Aluminum with anodized surface, moving coils use mold steel with
chrome-plated surface , which is better than the conventional
mechanical properties of steel.
Others
•According to the market research, most fixed ring and moving coil
have used the ordinary 45# steel with black surface , which is
bulky and not durable ,easy to fade and rust.
Specifications
| Model | SFM0814P |
| Drive Mode | Pneumatic |
| Air Requirements | 2-3m³/min |
| Application Range (O.D.) | 8" - 14" (219.1-355.6mm) |
| Wall Thickness | ≤100mm |
| Net Weight | 55kg |
| Feed Method | Star wheel system |
| Feed | 0.08mm/r |
| All standard accessories included |
Standard Configuration
We have standard configuration for the shipped machine. In addition
to packaged SFM machine, we will give you relevant motor, cutting
and beveling tools according to your drive mode and choice. We will
have a set of tools to help use the machine such as rubber hammer,
spray bottle, square and wrench set. Moreover we will have relevant
documents to support you such as operating manual, certificate of
conformity and u-disk. If you have other demands, we will try to
meet your demands.
FAQ
Q: Do you have any foreign agents?
A: Yes, of course. We pay attention to the foreign market and
expand the foreign continuously through our agents in Russia,
Korea, Sudan, Pakistan, Malaysia and so on. We are willing to
develop new agents in other countries.
Q: Which certificate does your company have?
A: We have many certificates such as high-tech enterprises,
high-tech product certification, high-tech product certification,
ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates
of our machines.
