Pipe Cutting Beveling Tools With Split Frame Structure for Thick
Wall Pipe
Product Introduction
SFM series are portable processing equipment for cutting, beveling
and end prefabrication of various pipes,
with which cutting and beveling can be conducted at the same time.
Basic Info.
| Model | SFM0814H |
| Drive Mode | Hydraulic |
| Hydraulic Requirements | 65L/min,10MPA |
| Application Range (O.D.) | 8" - 14" |
| Wall Thickness | ≤100mm |
| Net Weight | 55kg |
| Feed Method | Star wheel system |
| Feed | 0.08mm/r |
| All standard accessories included |
Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
Product Features
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
Specification
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless
steel, duples stainless steel, nickel alloy
Beveling type
Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe
diameter.
Manufacture

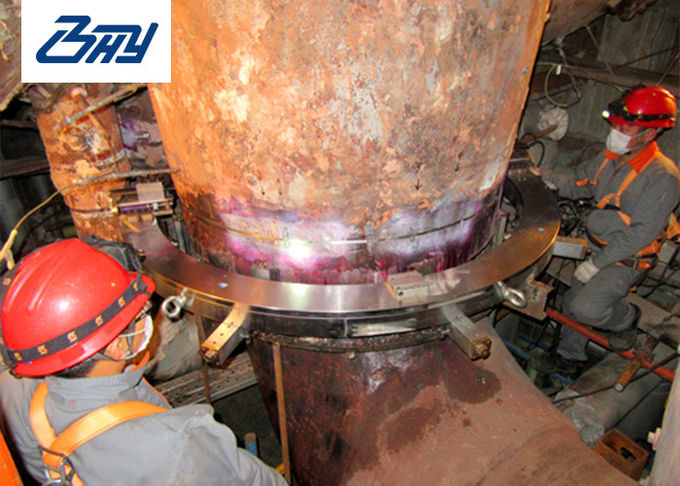

Working on site
■ Project: theramal power repaire
■ Pipe material: P91
■ Pripe O.D. : 1400mm
■ Pipe thickness: 110mm
